YMJ-B Portable Leaf Area Meter
Number of views:
1789

YMJ-B Portable Leaf Area Meter

YMJ-B Portable Leaf Area Meter
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1789
Product serial number
xz1003
Quantity
-
+
Stock:
0
Description
Parameters

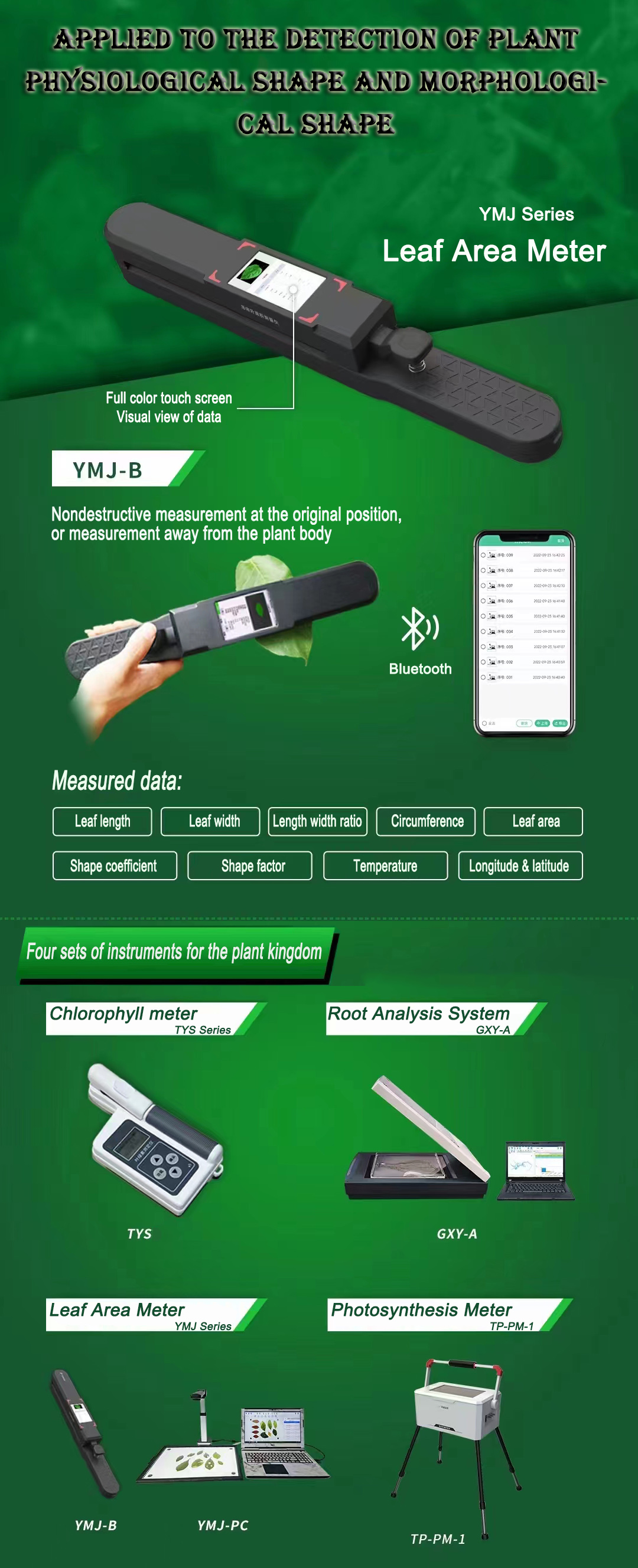

YMJ Series live leaf area measuring instrument uses contact image sensor(CIS) to scan the width of the blade it slips over. The length of the path it slips over is subdivided into several equal parts. The calculation of the entire leaf area is the accumulation of several subdivided small areas. Other measurement items can also be obtained and calculated using similar principles.

During the measuring processing of the instrument, the rubber roller rolls synchronously with the sample, and a precision gear is hung at the end of the rubber roller. The step length of the rubber roller is measured through the photoelectric switch. During scanning, the CPU inside the instrument will comprehensively calculate the information saved in the scanning processing to obtain the relevant information of the measured blade length, width, aspect ratio, perimeter, area, shape factor, ambient temperature, longitude and latitude.

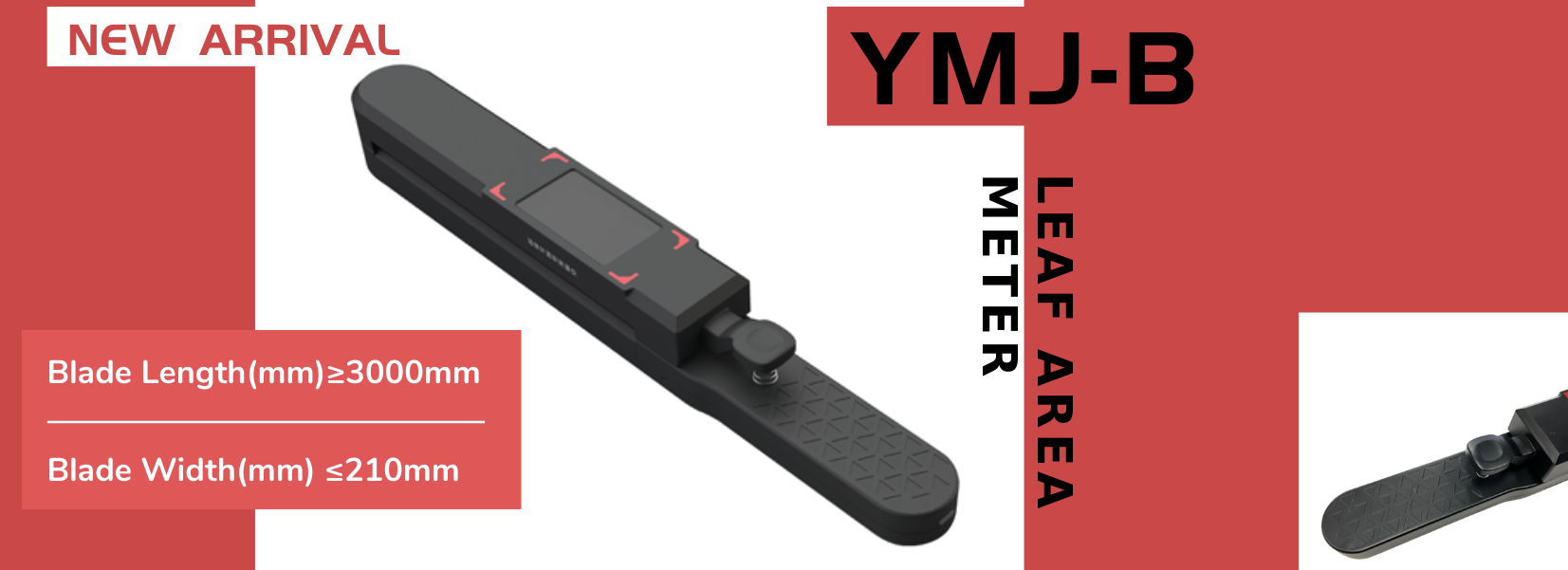

Ymj-B Portable Leaf Blade Area Measuring Instrument with RGB Color Screen

Product Advantages.

★ New user experience

RGB touch color screen: Dual display of data and graphics, 3 inch screen is easy to operate, you can directly touch the screen to set and switch functions.

★ With GPS function

It can communicate with the application APP through Bluetooth to realize the acquisition of GPS coordinates of the measured samples while measuring, and the measurement data can be synchronized with the APP in real time without manual recording.

★ Program firmware upgrade

The latest software upgrade firmware program can be obtained by communicating with the application APP through Bluetooth, and kit can also support the local upgrade program through the data cable.

★ Light-weight equipment

The weight of the whole machine is just 0.5 Kg, which greatly reduces the fatigue of outdoor use.

★Two-in-one charging data

The device is charged using the Type-c interface, and the data can be exported to excel table for viewing by connecting the data cable to the computer.

★ Mass storage

The device has a built-in storage area that can store 1000 pieces of data, an external storage area of 29GB, and a large data capacity.

★ Data compensation

According to the specific situation, you can choose "no compensation, rectangular compensation, triangle compensation".

★ Easy to operate

Start and measure immediately, automatic and manual measurement modes are optional automatically save data after each leaf measurement, no need to save manually.

★ Data management

The data in the built-in storage area can be viewed and deleted through the device. The data in the extended storage area can also be viewed and deleted through the Type-c data cable (data table, leaf diagram).

★ Low battery protection

If the battery power is less than or equal to 15%, It will prompt "battery power is low" during measurement to prevent accidental shutdown and data loss.

★ Endurance

Equipped with a 5AH lithium battery, it can work in the field for 16 hours when fully charged equipped with Type-c charging port, it will no be unable to work for a long time due to charging restrictions.

★ Data storage export

The built-in storage area of the device can store 1000 pieces of data, and it is also equipped with a 29GB large extended storage area to achieve a large storage capacity configure the Type-c interface and connect to the computer to view and export excel data sheets and leaf diagrams like a U disk.

★ Brightness and Sleep

The brightness of the screen can be adjusted manually according to the brightness of the environment. The device can be set to automatically shut down without any operation for a fixed time, reducing power waste.

Ymj-B Portable Leaf Blade Area Measuring Instrument with RGB Color Screen

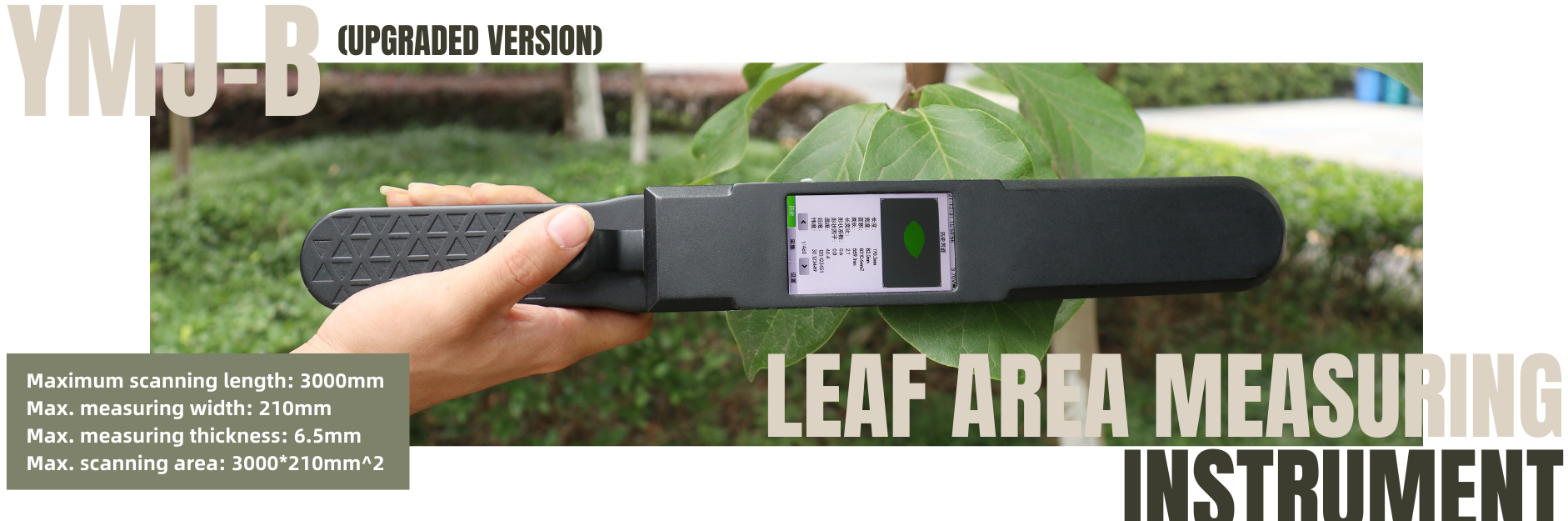

Detailed Photos.

Ymj-B Portable Leaf Blade Area Measuring Instrument with RGB Color Screen

Product Parameters.

Parameter

Measuring range

Resolution error

Resolution

Max-Blade scan length

3000mm

≤2%

0.1mm

Max-Blade scan width

210mm

≤2%

0.1mm

Area

≤210×3000mm²

±2%FULL

0.1mm²

Circumference (mm)

/

≤2%

0.1mm

Ambient temperature

0-50

/

/



Display screen

480×854 RGB display

Battery capacity

5000 mAh

Power supply

Charging interface Type-c

Store

Built-in storage area 1000, extended storage area 29GB

External

Type-C interface 1

Product size

420×50×54 mm

Weight

0.5 Kg


Models difference.

Model Measurement items
YMJ-A Leaf area, length, width, aspect ratio, average leaf area
YMJ-B Leaf area, length, width, aspect ratio, perimeter, shape coefficient, shape factor, ambient humidity
YMJ-D Leaf area, length, width, aspect ratio, perimeter, average leaf area
YMJ-E Leaf area, length, width, aspect ratio, perimeter, shape coefficient, shape factor
YMJ-PC Leaf area, length, width, aspect ratio, perimeter, shape coefficient, shape factor, color analysis, chlorophyll reference values, serrated area, envelope, perforation area
YMJ-CHA3 Leaf area, length, width, aspect ratio, perimeter, shape coefficient, number of serrations, perforation area, perforation circumference, lesion area, and perforation worm damage

Ymj-B Portable Leaf Blade Area Measuring Instrument with RGB Color Screen

Agri-testing Instrument.

Ymj-B Portable Leaf Blade Area Measuring Instrument with RGB Color ScreenYmj-B Portable Leaf Blade Area Measuring Instrument with RGB Color Screen

FAQ.

Q1. How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

Q2. How can I pay?
We accept many payment term, such as T/T, Western Union…

Q3. When I receive it after pay?
Normal models can be delivered with 5-7days, please contact us to check transport time to your address.

Q4. What should I do if I do not know how to use?
Manual user will be sent together, you can also contact us with more technological support.

Q5. What should I do if some parts broken?
We do standard export package and 1 year warranty except wear parts.Ymj-B Portable Leaf Blade Area Measuring Instrument with RGB Color Screen
